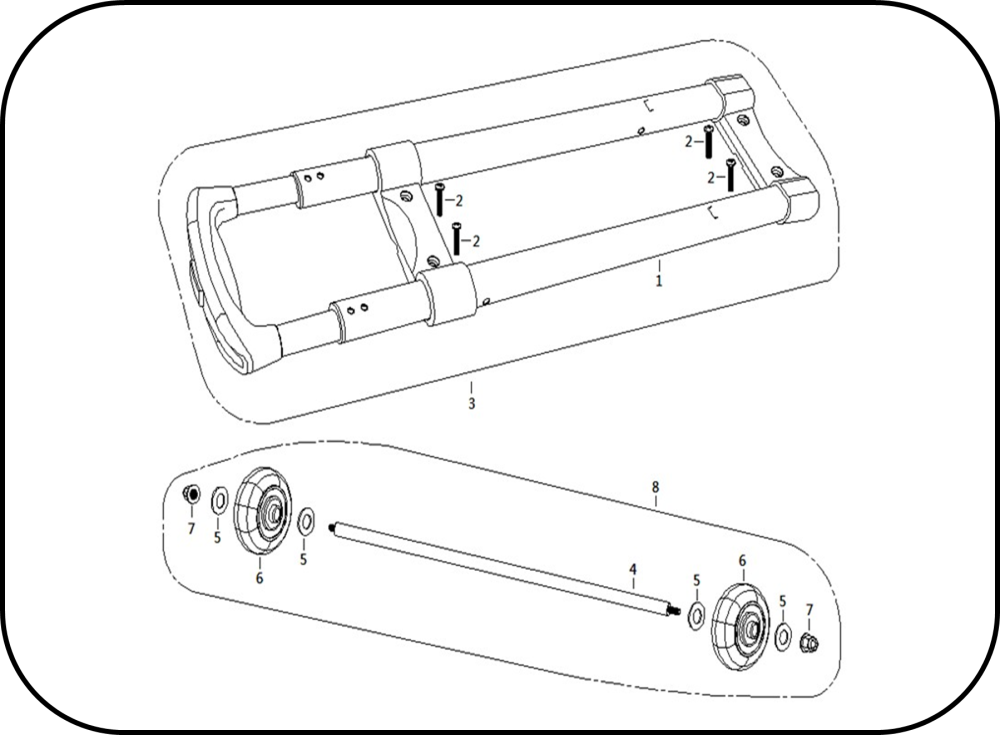

Ref. No

Description

SIP Part No.

1.

Hand Rod

PW01-02831

2.

Install screw M5×25

PW01-02832

3.

Complete handle

PW01-02833

4.

Axle

PW01-02834

5.

Gasket Φ8×Φ16×1

PW01-02835

6.

Wheel

PW01-02836

7.

Screw Nut M6×8

PW01-02837

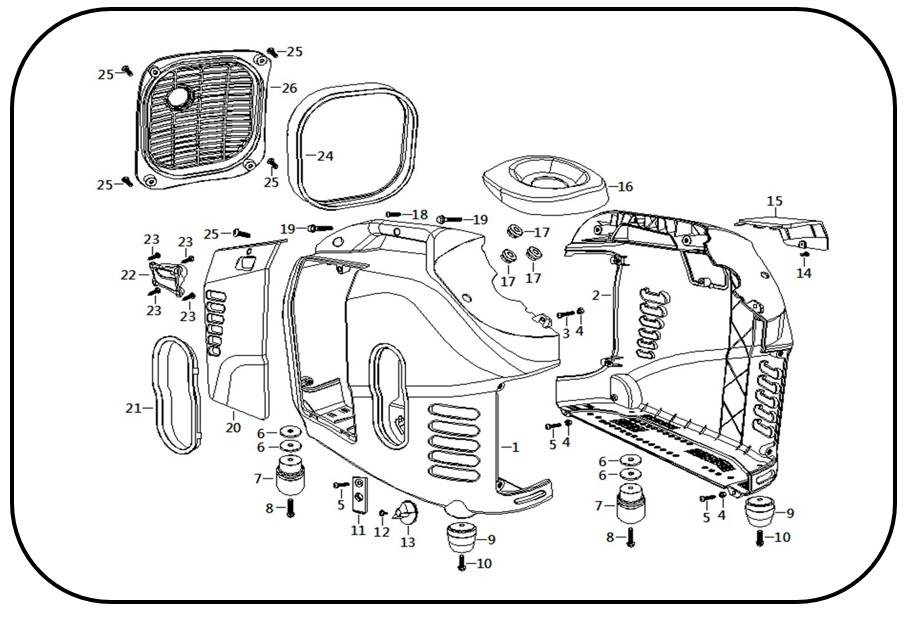

Ref. No

Description

SIP Part No.

Ref. No

Description

SIP Part No.

1.

Left Case assy

PW01-02838

14.

Bolt M6×12

PW01-02851

2.

Right case assy

PW01-02839

15.

Cover, plug

PW01-02852

3.

Bolt M5×25

PW01-02840

16.

Fuel tank decoration cover

PW01-02853

4.

Nut M4

PW01-02841

17.

Buffer rubber

PW01-02854

5.

Bolt M5×20

PW01-02842

18.

Screw ST4.8×20

PW01-02855

6.

Aluminium gasket

PW01-02843

19.

Screw Bolt M6×24

PW01-02856

7.

Rubber Supporting column

（Rear）

PW01-02844

20.

Cover Left, Case

PW01-02857

8.

Screw Bolt M6×25

PW01-02845

21.

Chromed decoration strip

PW01-02858

9.

Rubber Supporting column

（Front）

PW01-02846

22.

Choke rubber

PW01-02859

10.

Screw bolt M6×20

PW01-02847

23.

Screw ST4.2×12

PW01-02860

11.

Hand pull plate fender

PW01-02848

24.

Seal Rubber

PW01-02861

12.

Screw Bolt with gasket M4×11

PW01-02849

25.

Bolt M6×16

PW01-02862

13.

Stop button

PW01-02850

26.

Muffler Cover

PW01-02863

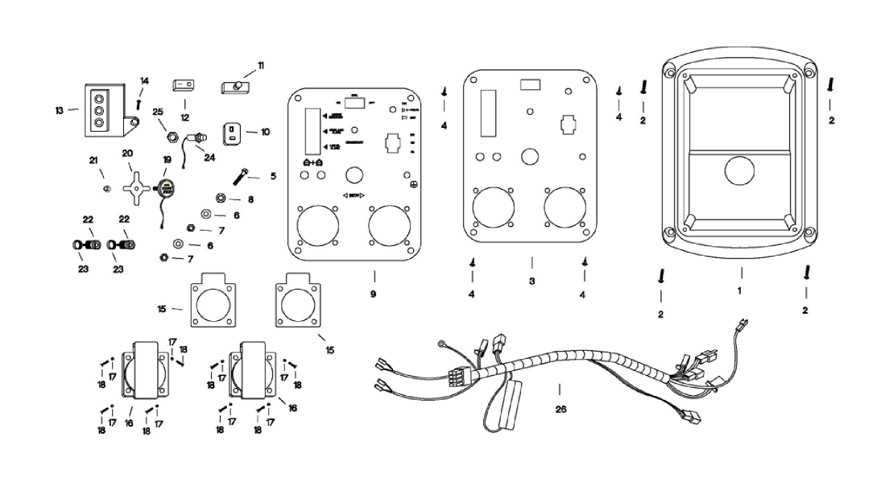

Ref. No

Description

SIP Part No.

Ref. No

Description

SIP Part No.

1.

Plate, Front cover

PW01-02864

14.

Screw bolt M5×12

PW01-02877

2.

Cross recessed flat head bolt M6×16

PW01-02865

15.

Rubber pad

PW01-02878

3.

Plate, Front cover

PW01-02866

16.

Socket

PW01-02879

4.

Screw ST4.2×12

PW01-02867

17.

Nut M4

PW01-02880

5.

Bolt M6×16

PW01-02868

18.

Screw M4×10

PW01-02881

6.

Gasket Φ6.5×Φ12×1

PW01-02869

19.

One-key start button

PW01-02882

7.

Nut M6

PW01-02870

20.

One-key start button press plate

PW01-02883

8.

Toothed gasket Φ6.5×Φ12×1

PW01-02871

21.

Nut M8

PW01-02884

9.

Panel Decal

PW01-02872

22.

Parallel socket

PW01-02885

10.

DC socket

PW01-02873

23.

locking nut for parallel socket

PW01-02886

11.

DC protector

PW01-02874

24.

Reset switch

PW01-02887

12.

On/Off switch

PW01-02875

25.

Reset switch lock special nut

PW01-02888

13.

Indicator light board

PW01-02876

26.

Wiring Loom

PW01-02889

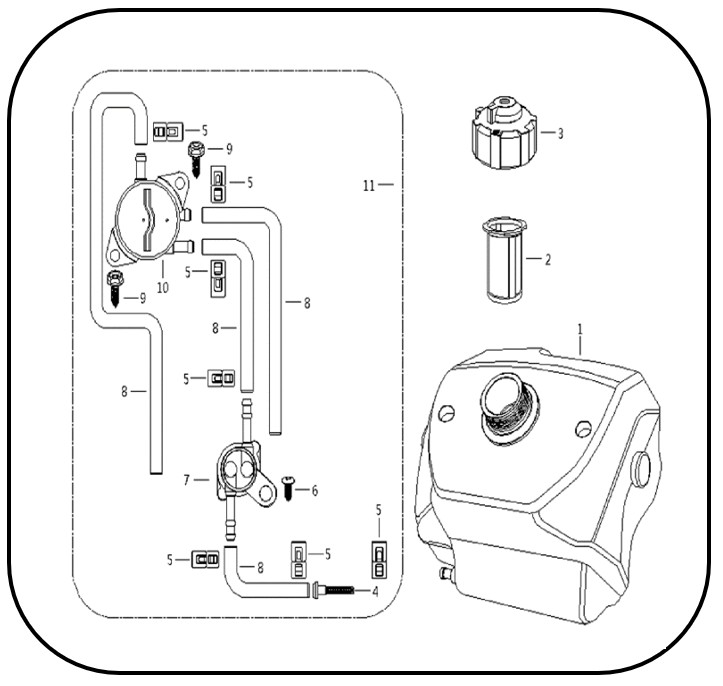

Ref. No

Description

SIP Part No.

1.

Tank

PW01-02890

2.

Filter Mesh assy

PW01-02891

3.

Tank cap

PW01-02892

4.

 Fuel filter

PW01-02893

5.

Clamp

PW01-02894

6.

Screw ST4.2×12

PW01-02895

7.

Fuel switch

PW01-02896

8.

 Fuel tube

PW01-02897

9.

Bolt M5×16

PW01-02898

10.

Fuel Pump

PW01-02899

11.

Pump / Valve Assy

PW01-02900

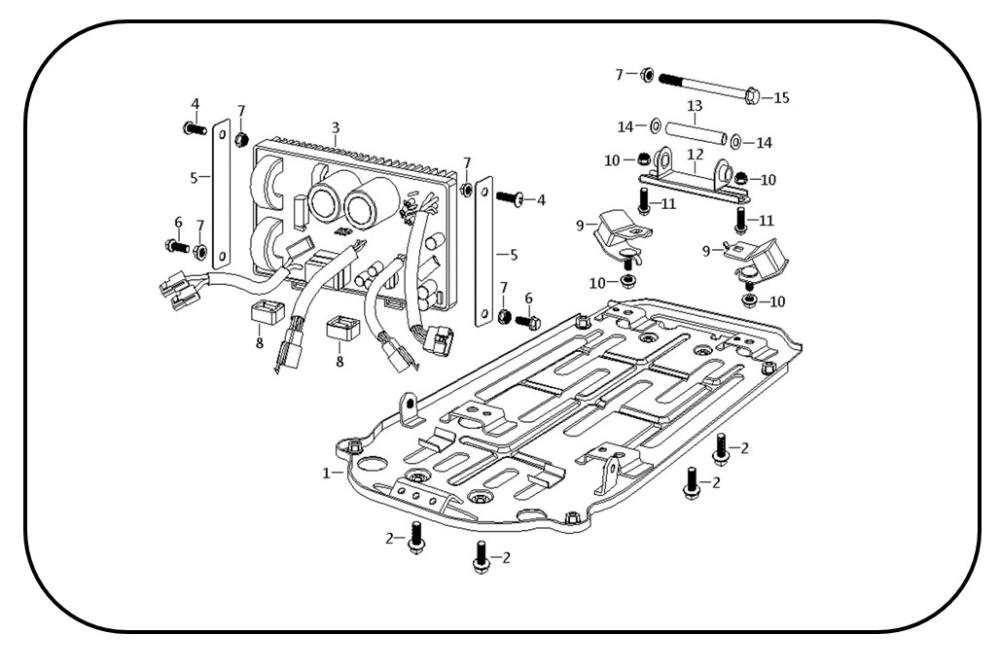

Ref. No

Description

SIP Part No.

Ref. No

Description

SIP Part No.

1.

Engine mounting bracket

PW01-02901

9.

Engine Mounts

PW01-02909

2.

Screw bolt M8×16

PW01-02902

10.

Nut M8

PW01-02910

3.

Inverter Assy

PW01-02903

11.

Screw bolt M8×20

PW01-02911

4.

Bolt M6×16

PW01-02904

12.

Dynamic shock absorber

PW01-02912

5.

Inverter assy fixed bracket

PW01-02905

13.

Bushing, Bolt Φ7.5×Φ12.5×85.5

PW01-02913

6.

Screw bolt M6×12

PW01-02906

14.

Gasket Φ7×Φ18×2

PW01-02914

7.

Nut M6

PW01-02907

15.

Rear Mounting bolt M6×95

PW01-02915

8.

Rubber cover

PW01-02908

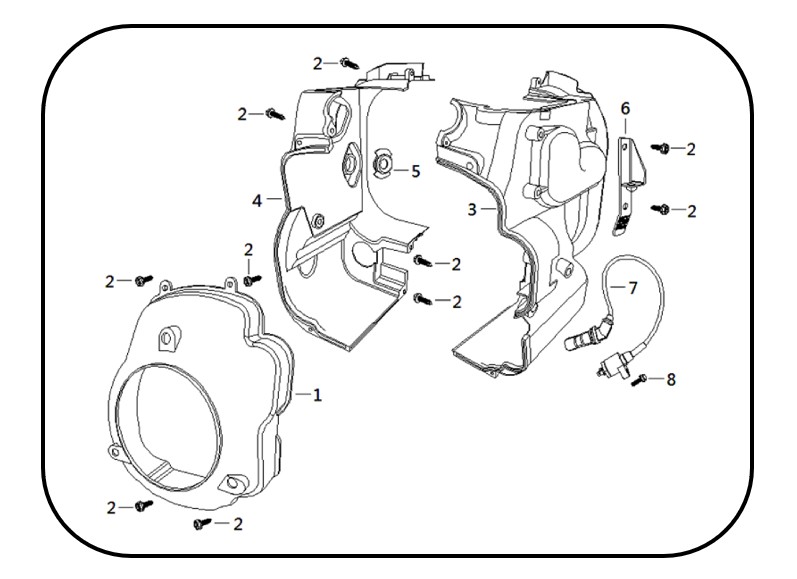

Ref. No

Description

SIP Part No.

1.

Fan cover

PW01-02926

2.

Bolt  M5×16

PW01-02927

3.

Right cover

PW01-02928

4.

Left cover

PW01-02929

5.

Rubber stopper

PW01-02930

6.

 Install Bracket, high voltage    ignition coil

PW01-02931

7.

High voltage ignition coil

PW01-02932

8.

Bolt  M6×25

PW01-02933

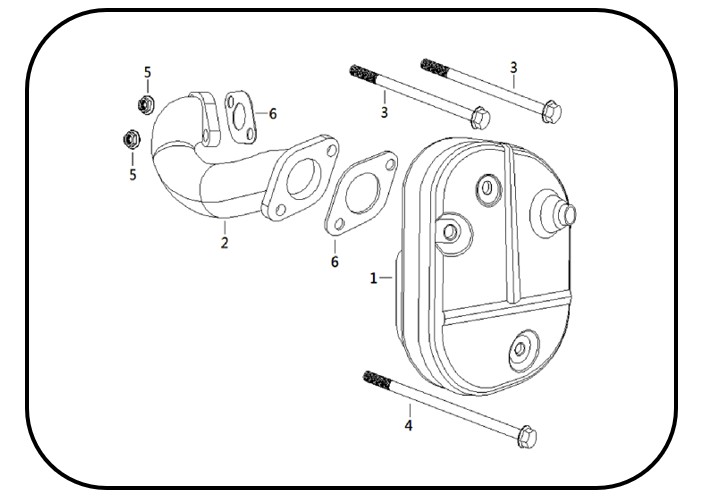

Ref. No

Description

SIP Part No.

1.

Muffler

PW01-02934

2.

Tube, muffler

PW01-02935

3.

Bolt  M6×65

PW01-02936

4.

Bolt  M6×95

PW01-02937

5.

Nut M6

PW01-02938

6.

Gasket, muffler

PW01-02939

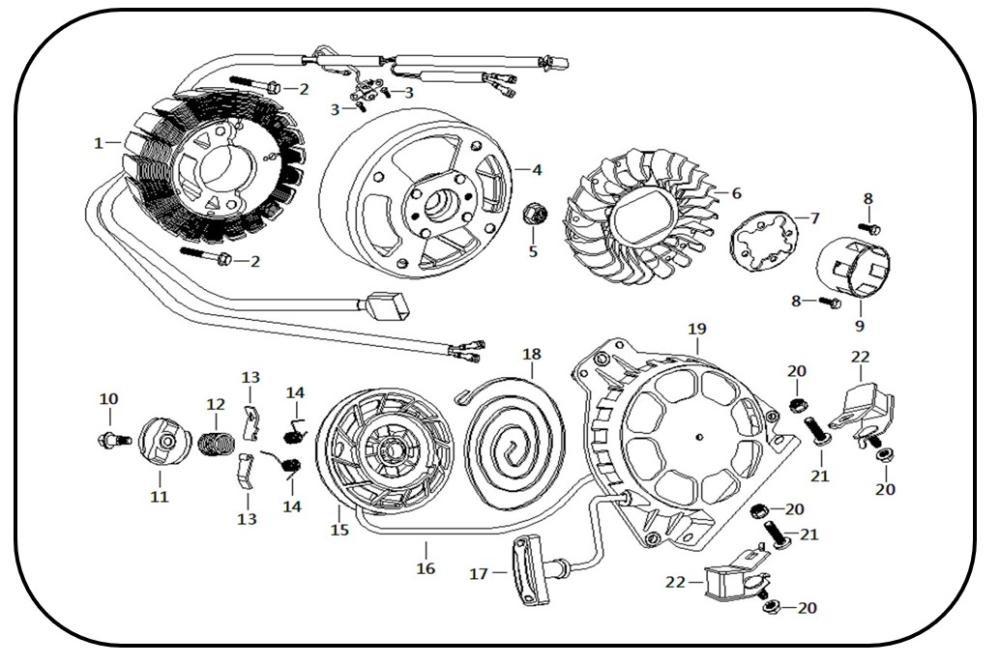

Ref. No

Description

SIP Part No.

Ref. No

Description

SIP Part No.

1.

Magneto

PW01-02940

12.

Lift spring

PW01-02951

2.

Bolt M6×40

PW01-02941

13.

Limit plate

PW01-02952

3.

Bolt M5×12

PW01-02942

14.

Limit spring

PW01-02953

4.

Magneto cover

PW01-02943

15.

Recoil Plate

PW01-02954

5.

Nut M12

PW01-02944

16.

Wire

PW01-02955

6.

Fan impeller

PW01-02945

17.

Handlebar

PW01-02956

7.

Impeller plate

PW01-02946

18.

Coiling Spring

PW01-02957

8.

Bolt M6×12

PW01-02947

19.

Recoil plate cover

PW01-02958

9.

Start Cup

PW01-02948

20.

Nut M7

PW01-02959

10.

Hex flange stepped bolt M6×17

PW01-02949

21.

 M8×25

PW01-02960

11.

Limit bracket

PW01-02950

22.

Engine Mount

PW01-02961

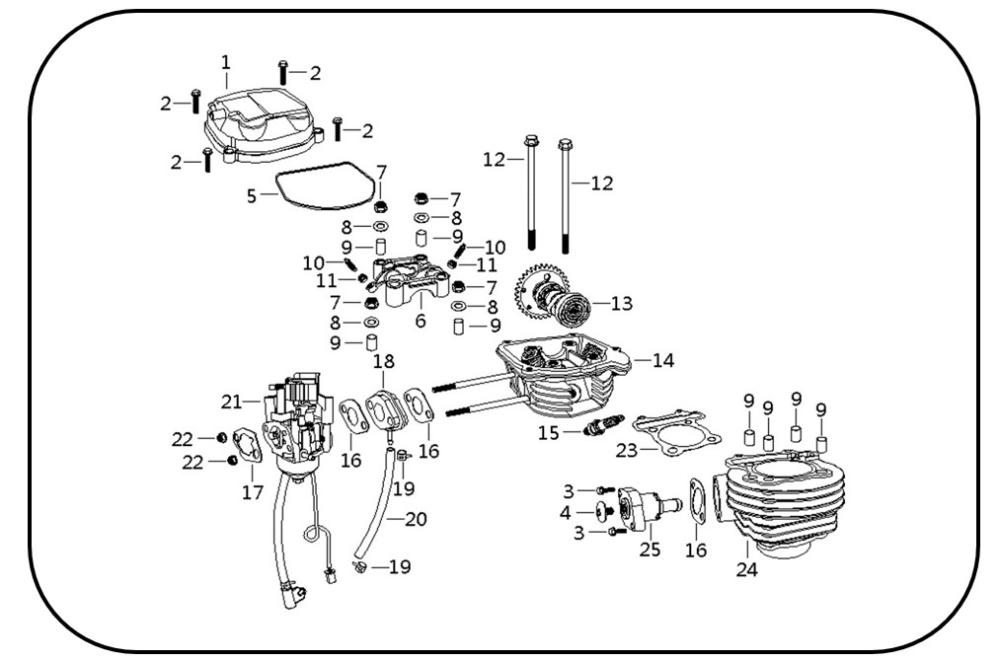

Ref. No

Description

SIP Part No.

Ref. No

Description

SIP Part No.

1.

Cylinder cover

PW01-02962

14.

Cylinder head

PW01-02975

2.

Bolt  M6×25

PW01-02963

15.

Plug

PW01-02976

3.

Bolt M6×22

PW01-02964

16.

Adiabatic Gasket1

PW01-02977

4.

Bolt M6×7

PW01-02965

17.

Adiabatic Gasket2

PW01-02978

5.

Seal Strip

PW01-02966

18.

Adiabatic Plate ,carburettor

PW01-02979

6.

Rocking arm

PW01-02967

19.

Clamp

PW01-02980

7.

Nut M8

PW01-02968

20.

Fuel tube

PW01-02981

8.

Gasket  Φ8.5×Φ20×2

PW01-02969

21.

Carburettor

PW01-02982

9.

Locating Dowel

PW01-02970

22.

Nut M6

PW01-02983

10.

Adjusting screw, valve      clearance

PW01-02971

23.

Gasket, cylinder head

PW01-02984

11.

Nut M5

PW01-02972

24.

Cylinder

PW01-02985

12.

Bolt M6×100

PW01-02973

25.

Adjuster

PW01-02986

13.

Camshaft

PW01-02974
